Plastic Drainage Channel

  • ODM Plastic Drainage Channel
  • ODM Plastic Drainage Channel
  • ODM Plastic Drainage Channel
ODM Plastic Drainage ChannelODM Plastic Drainage ChannelODM Plastic Drainage Channel

ODM Plastic Drainage Channel

  • Model Number:PP100*55*1000
  • Loading:A15
  • Material:Polypropylene
  • Width (Inner):100MM
  • Description: ODM Plastic Drainage Channel A15 With Galvanzied Steed Grating
  • INQUIRY   EMAIL

ODM Plastic Drainage Channel A15 With Galvanzied Steed Grating

Description:

HDPE linear drains are mainly used for the rapid collection of ground rainwater and the function of guiding the rainwater to the municipal pipe network. It has been widely used in Europe by replacing the cast-in-place concrete ditch body and the resin concrete ditch body with polymer materials. At present, with the rising of domestic construction materials and labor costs, HDPE linear drain has been widely concerned with many advantages, and is now gradually used in commercial pedestrian blocks, parks, parking lots, roads, ports, airports and other occasions.


Applications:

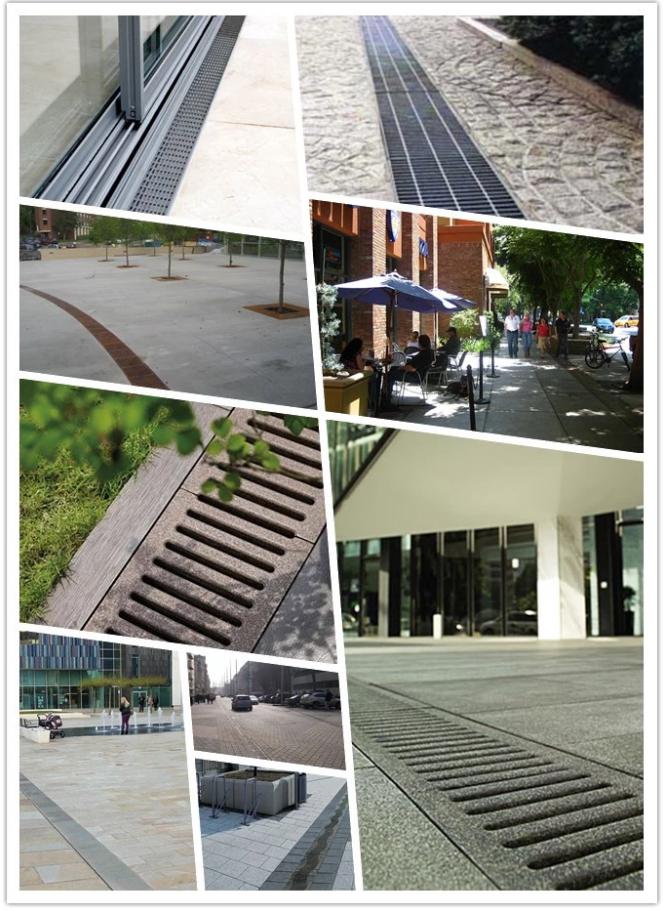

Polypropylene channel matrix trench can meet the requrimeets of strength standard of EN-1433 from A15 to D400 .Its application area include side works ,public transport roads,public squares,cars parks and all other areas vehicles entrance permitted.



Specifications:

Polypropylene channel with galvanzied steed grating
Item code Width (Inner) mm Width(Outer) mm Total height mm Loading
PP100*55*1000 100 125 80 A15
Polypropylene channel with polypropylene grating
Item code Width (Inner) mm Width(Outer) mm Total height mm Loading
PP100*55*1000 100 125 80 A15

Competitive Advantage/ Features:

1. Polypropylene material , strong bearing capacity, corrosion resistance, frost resistance, long service life,maintenance-free;
2. Compared with the traditional drainage ditch, the surface is smooth.
3. Adopt socket connection, easy to install;
4. Composition of the system: drainage ditch structure, cover plate, inspection wells and accessories.
